CAROZZO LANDSLIDE

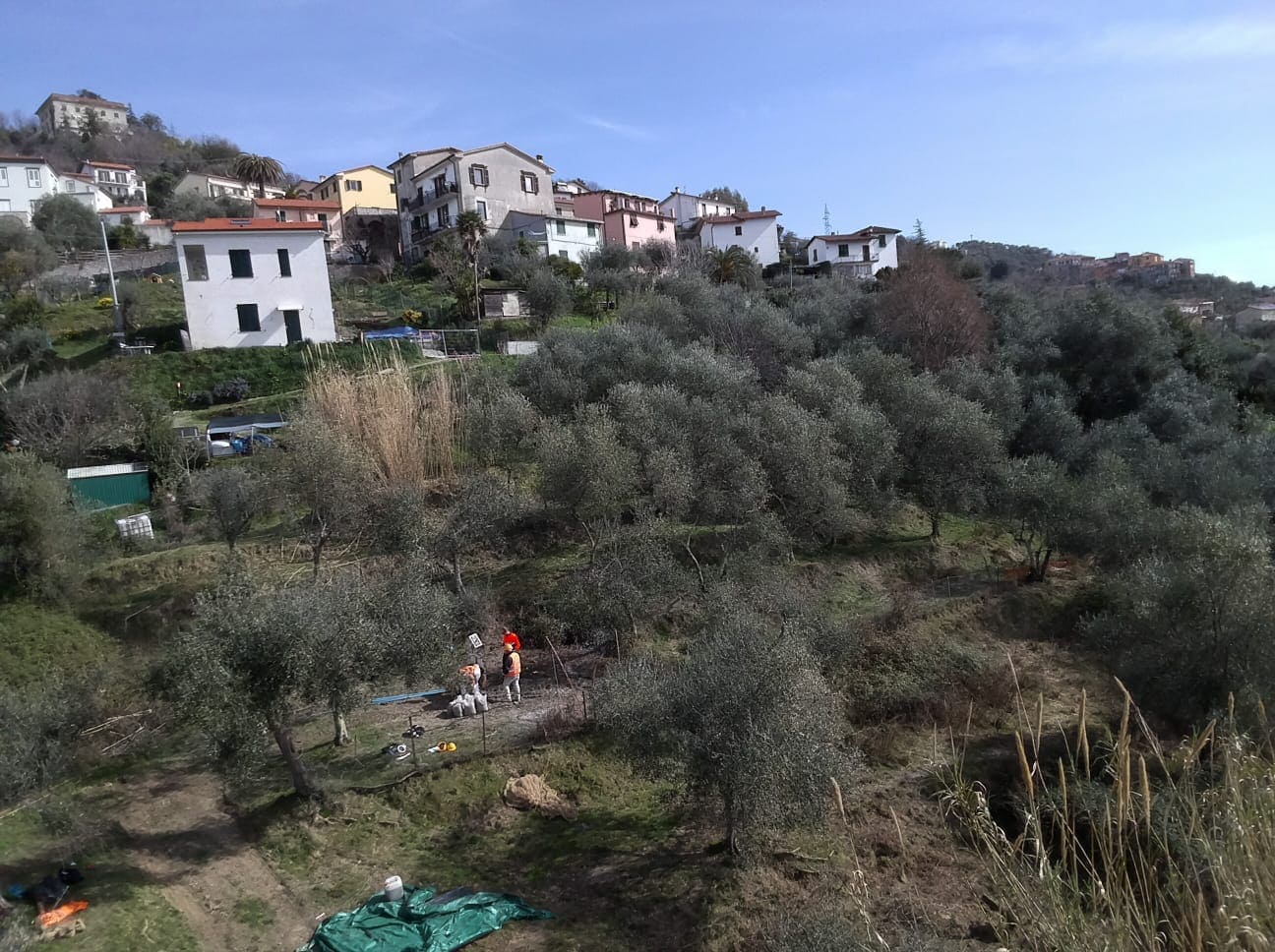

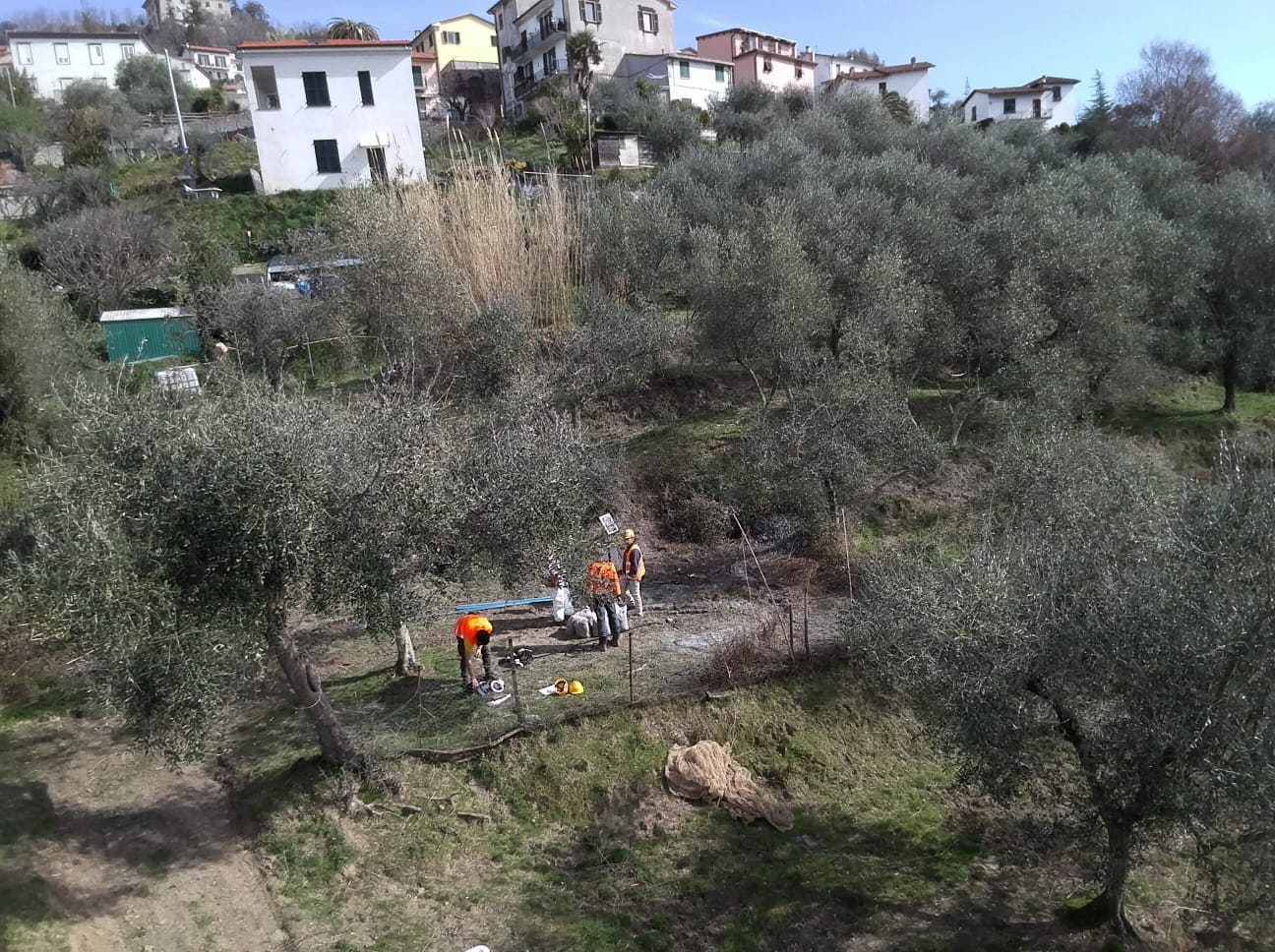

The area is characterized by the construction of a new infrastructure that will permit to reach the La Spezia port HUB. The road crosses some mountains and hilly areas, equipped with a complex and advanced monitoring system which controls the slope stability in real time.

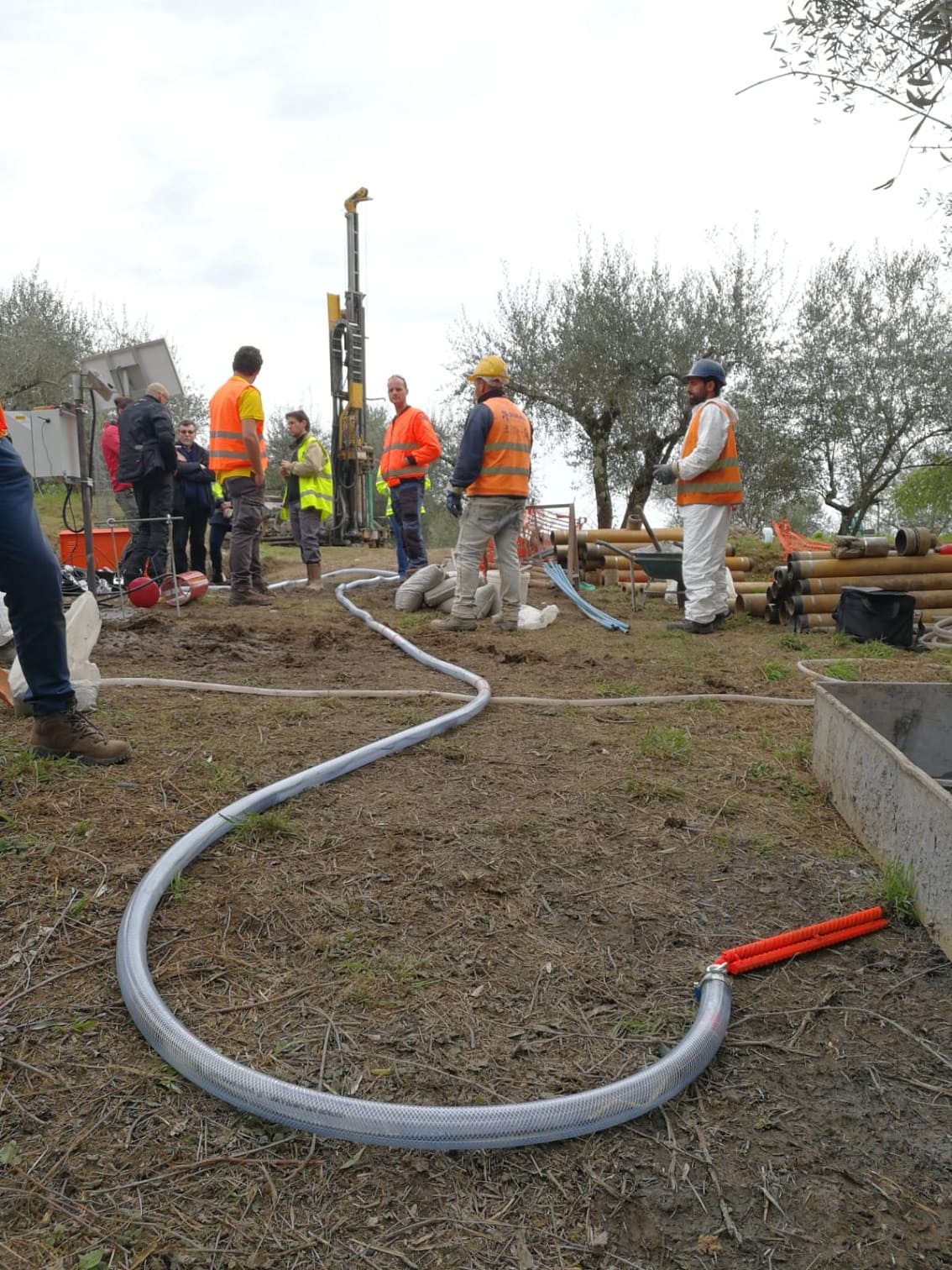

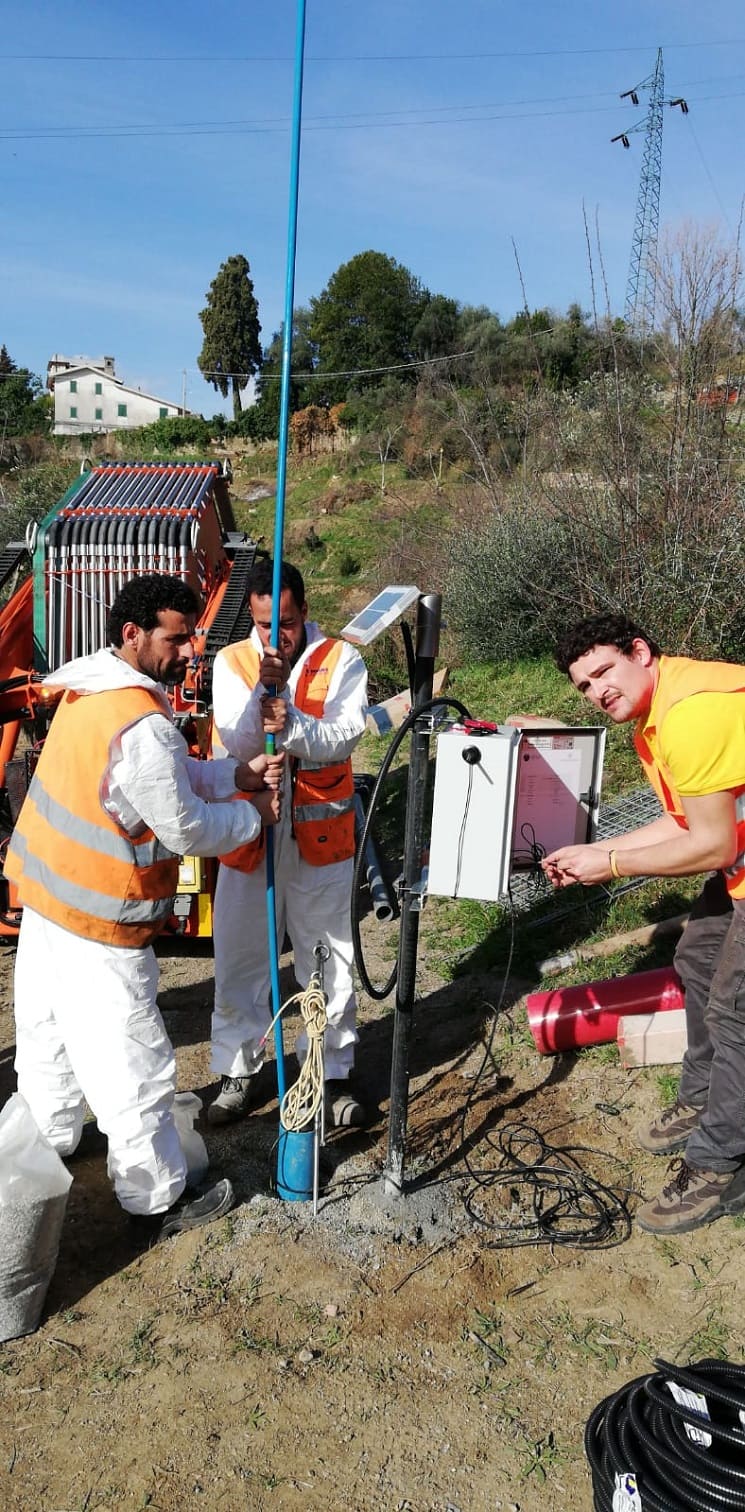

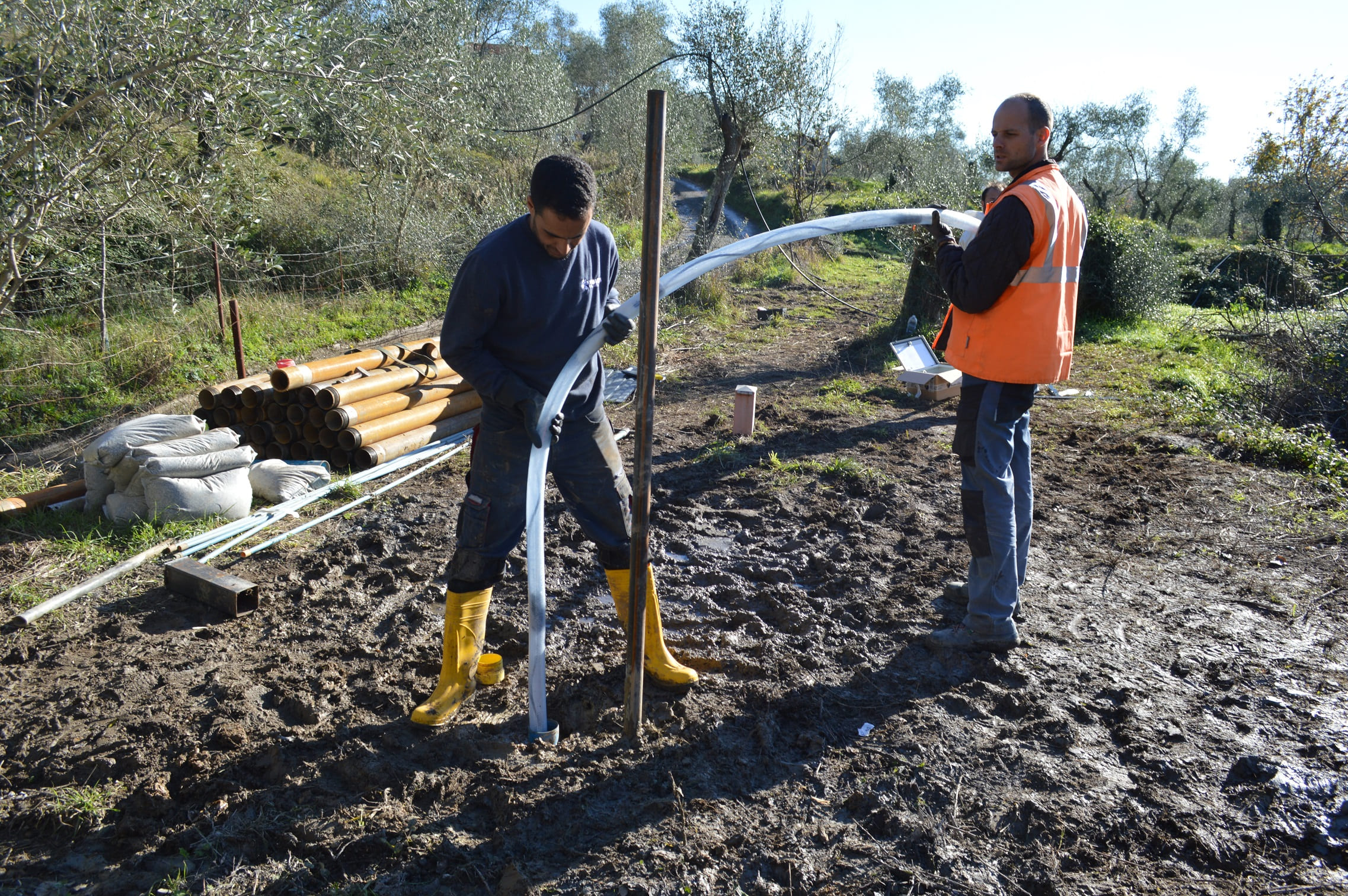

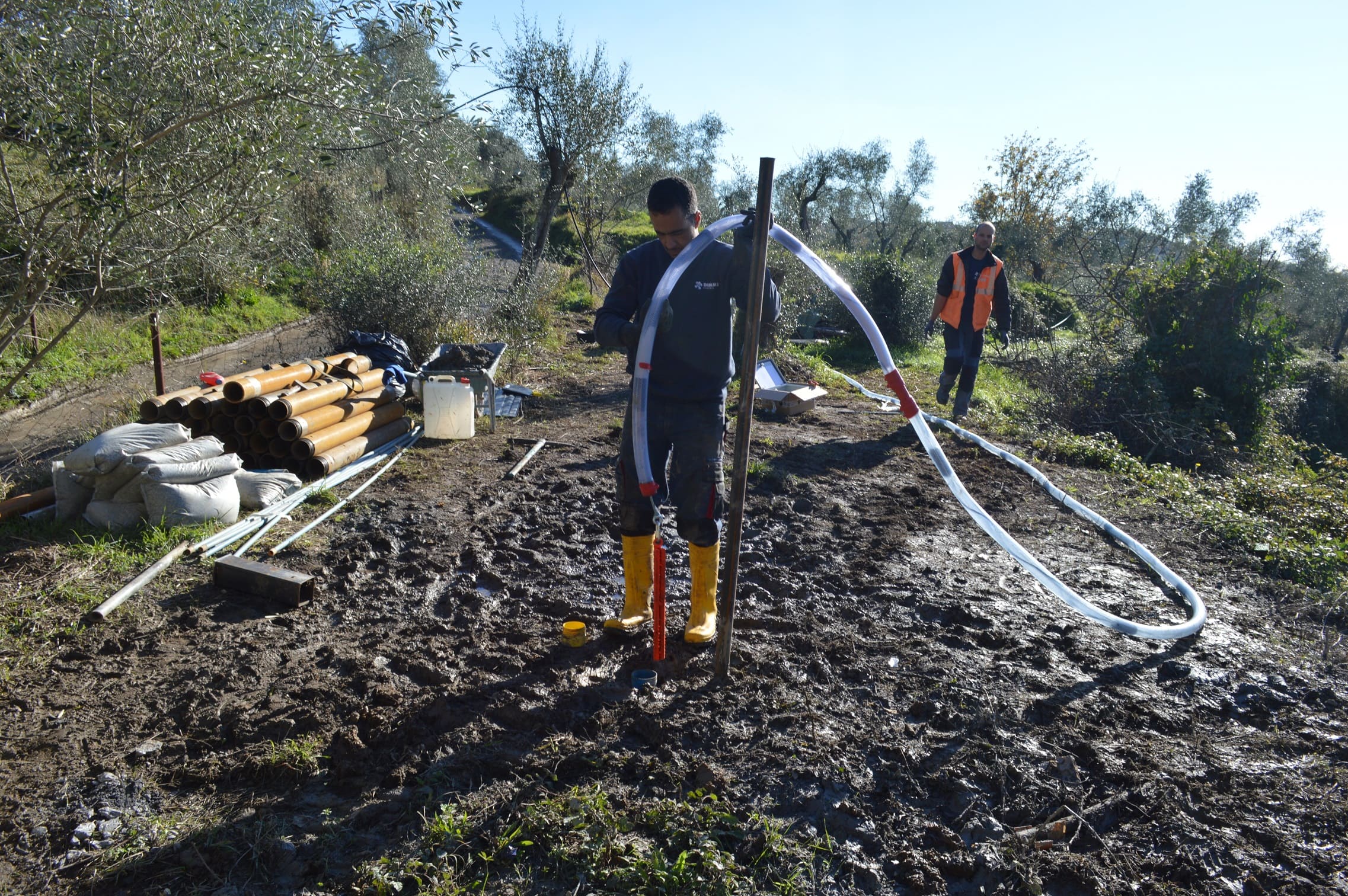

In order to detect slope displacements, pore pressure, water level, temperature and atmospheric pressure, 4 MUMS Vertical Arrays have been installed since December 2018. The Arrays are equipped with 20 high-resolution multi-parametric inclinometer sensors Tilt Link HR 3D V (with an interspace of 100 cm), 1 or 2 piezometers and a total of 2 barometers.

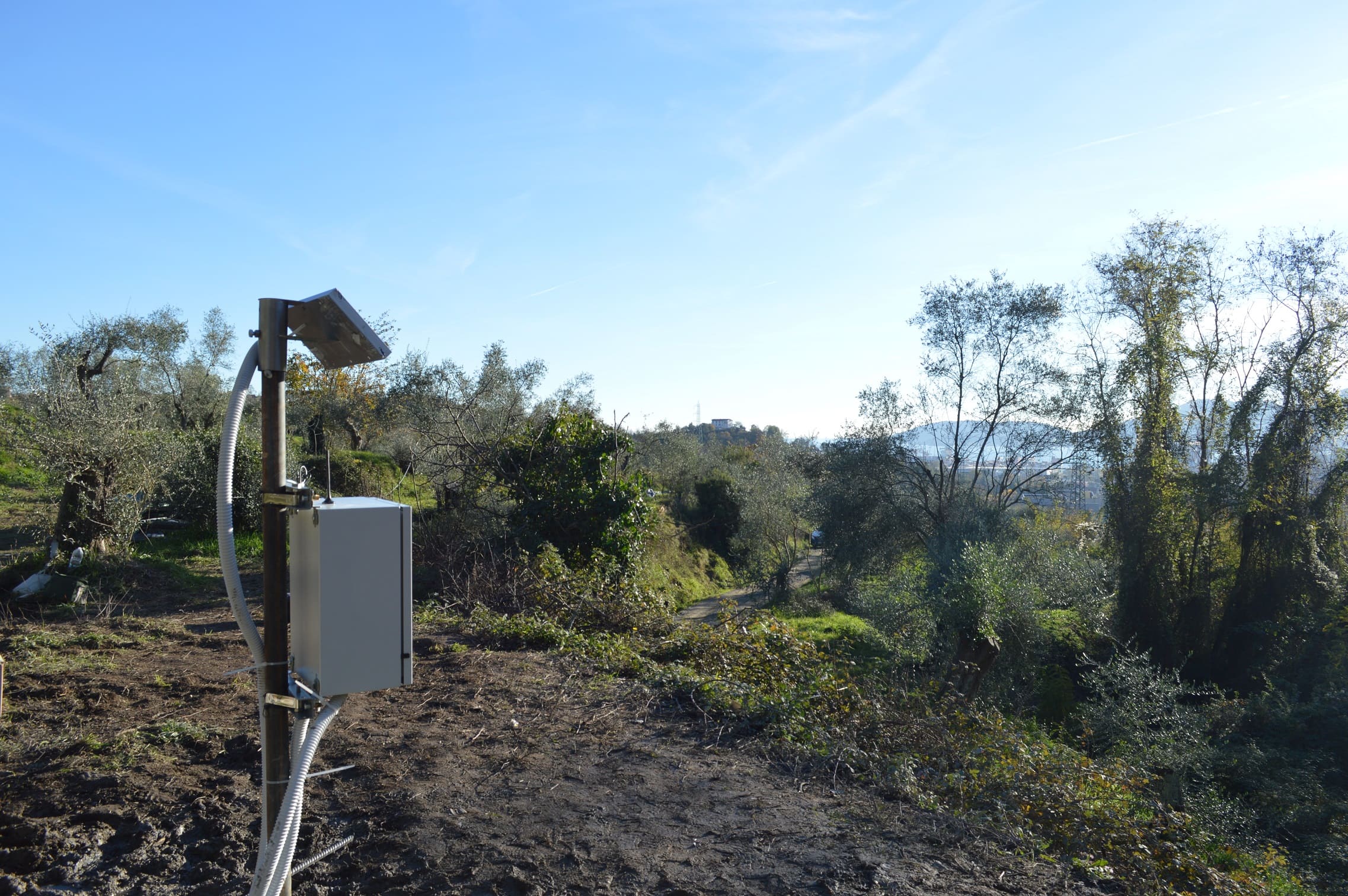

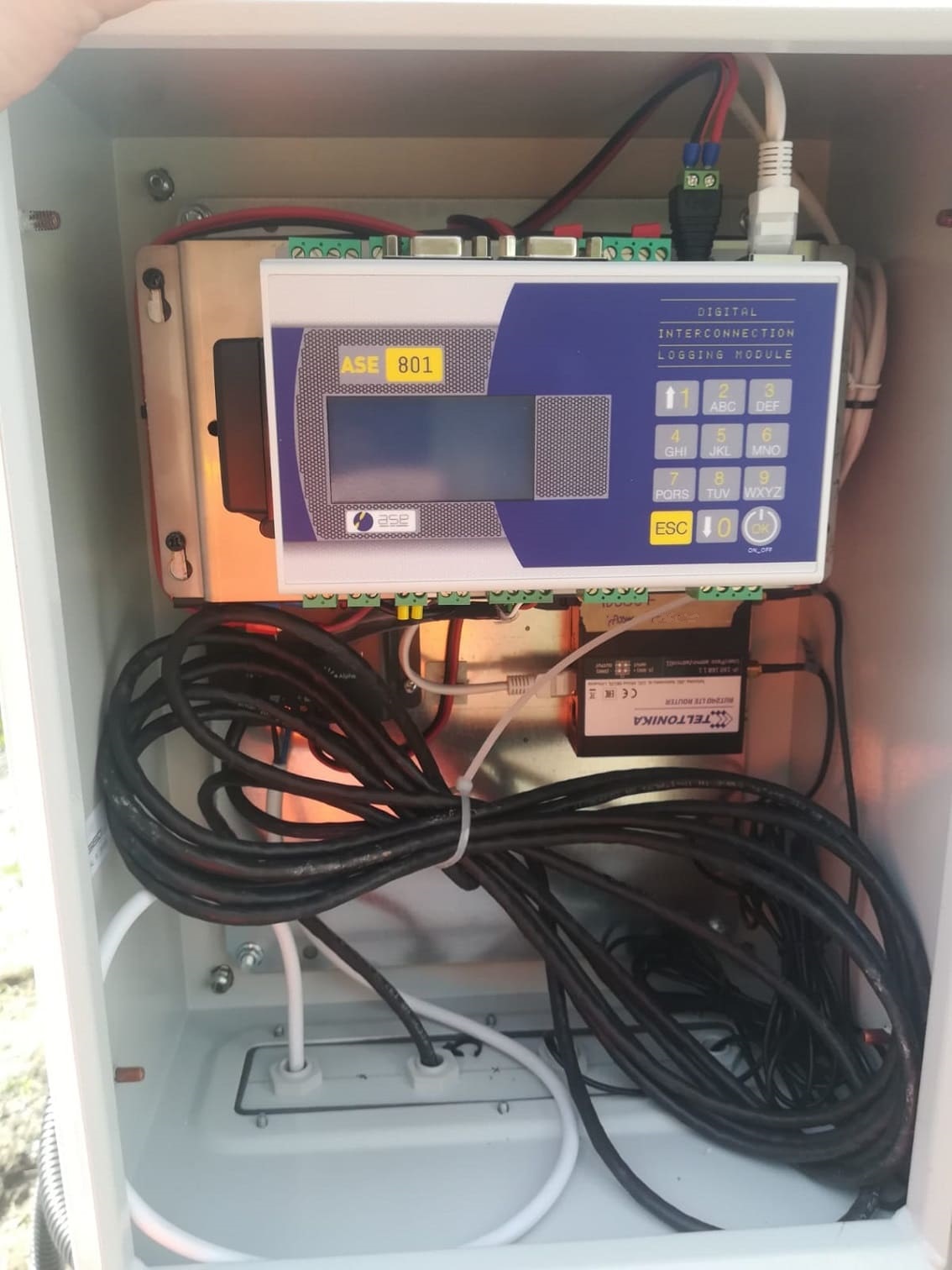

Control unit queries nodes at defined time intervals and saves them into a SD card. Data are transmitted with UMTS connection to the elaboration centre, where an automatic software elaborates them. Results are available on a web platform in a few minutes.



LOCATION

La Spezia (SP), Italia

CLIENT

ANAS S.p.a.

RESPONSIBLE FOR MONITORING

ANAS S.p.a.

START OF MONITORING

December 2018

SYSTEMS USED
SENSORS
CONTROL UNIT

G801
