Landslides and Embankments

AGNA LANDSLIDE

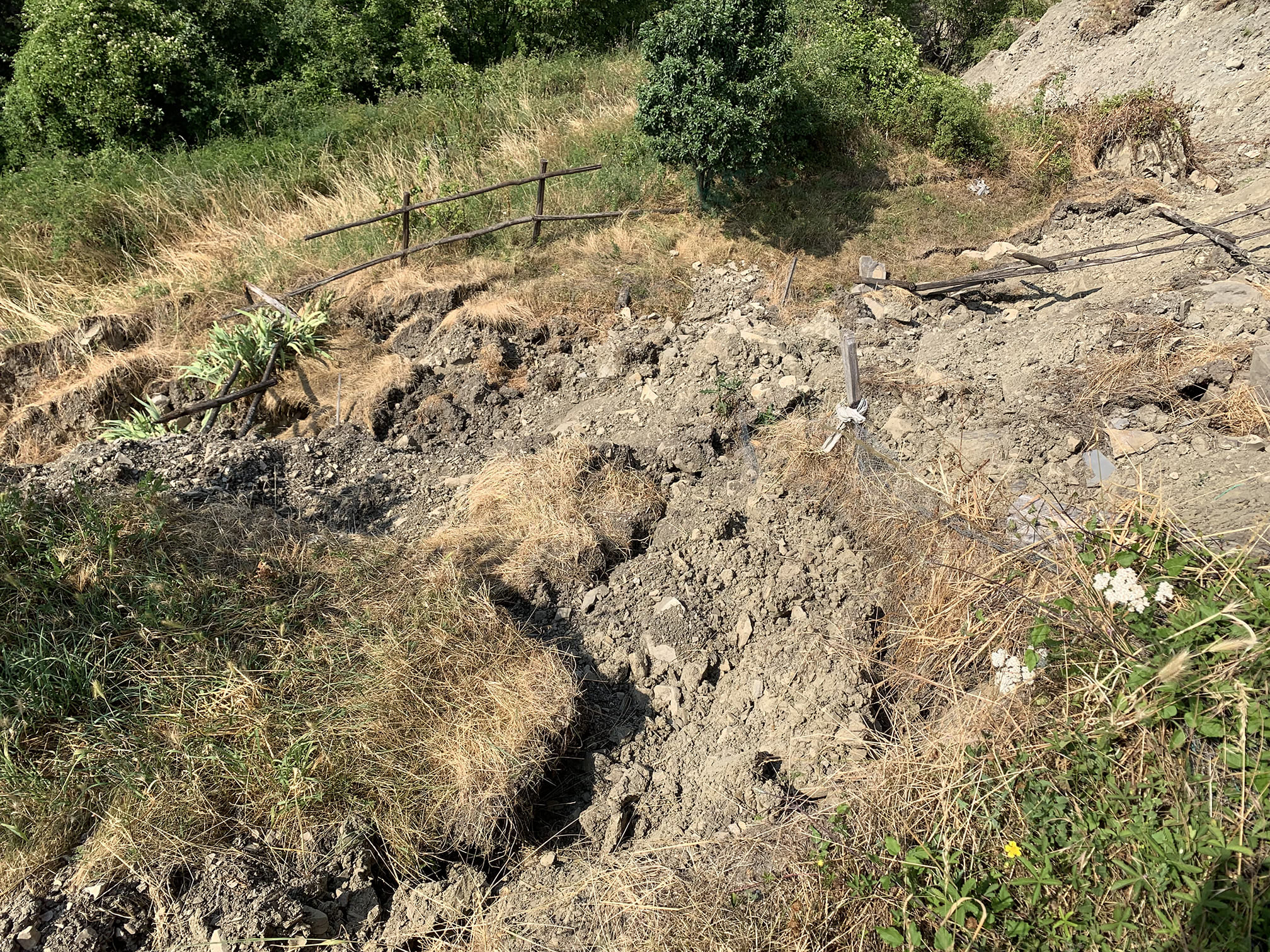

Parma Apennine is interested by several landslides threatening little towns. Agna, a small inhabited center near Corniglio (PR), represents one of these cases where a new active landslide, adjacent to a known one, has recently started to move just some hundreds meters far from houses.

MUMS system has been installed in July 2019 in order to acquire information about landslide, the design of mitigation interventions and monitor the movement with Early Warning purposes. The instrumentation guarantees the control of parameters like soil displacements, buildings tilt variations and the opening of fractures.

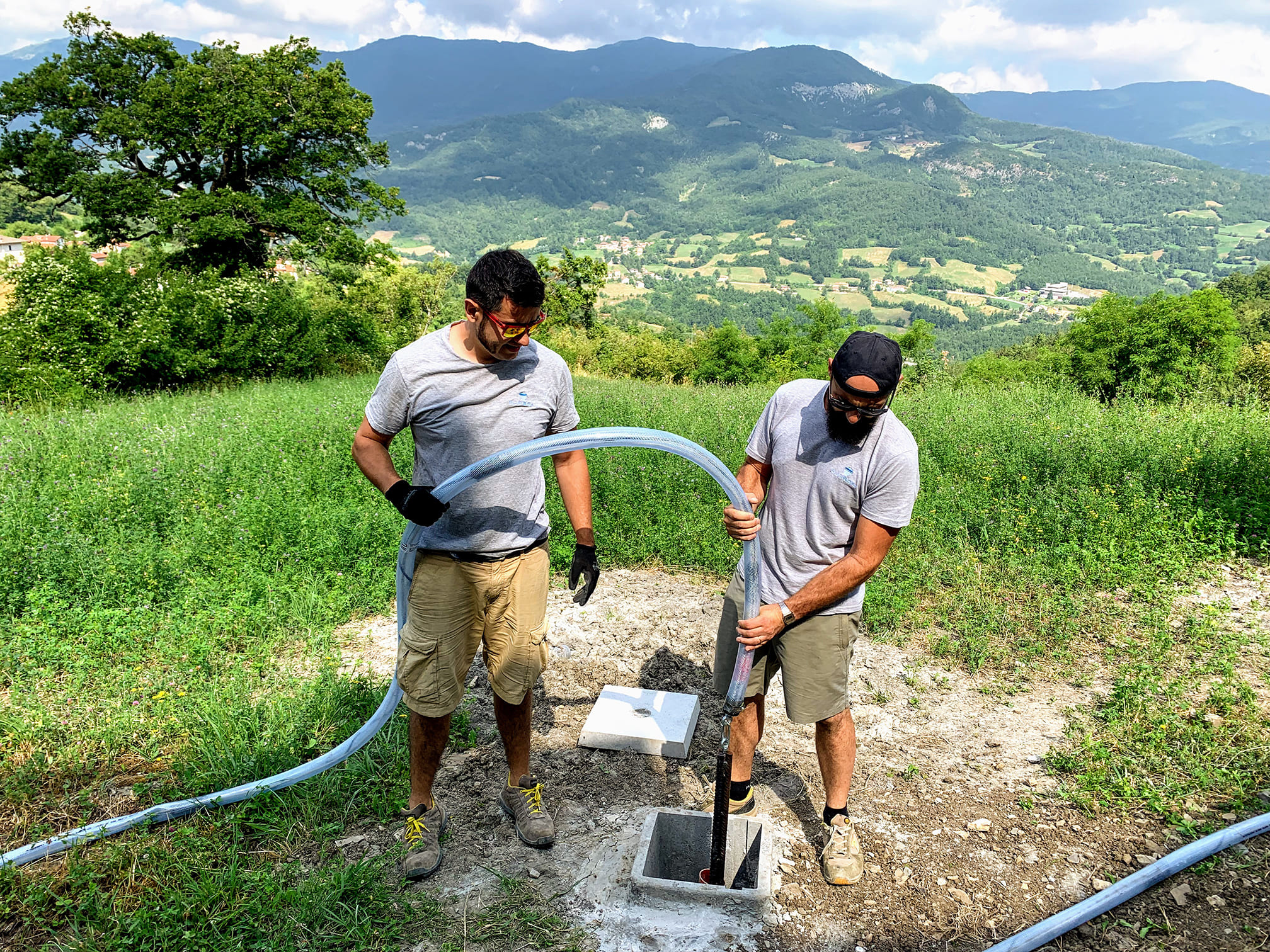

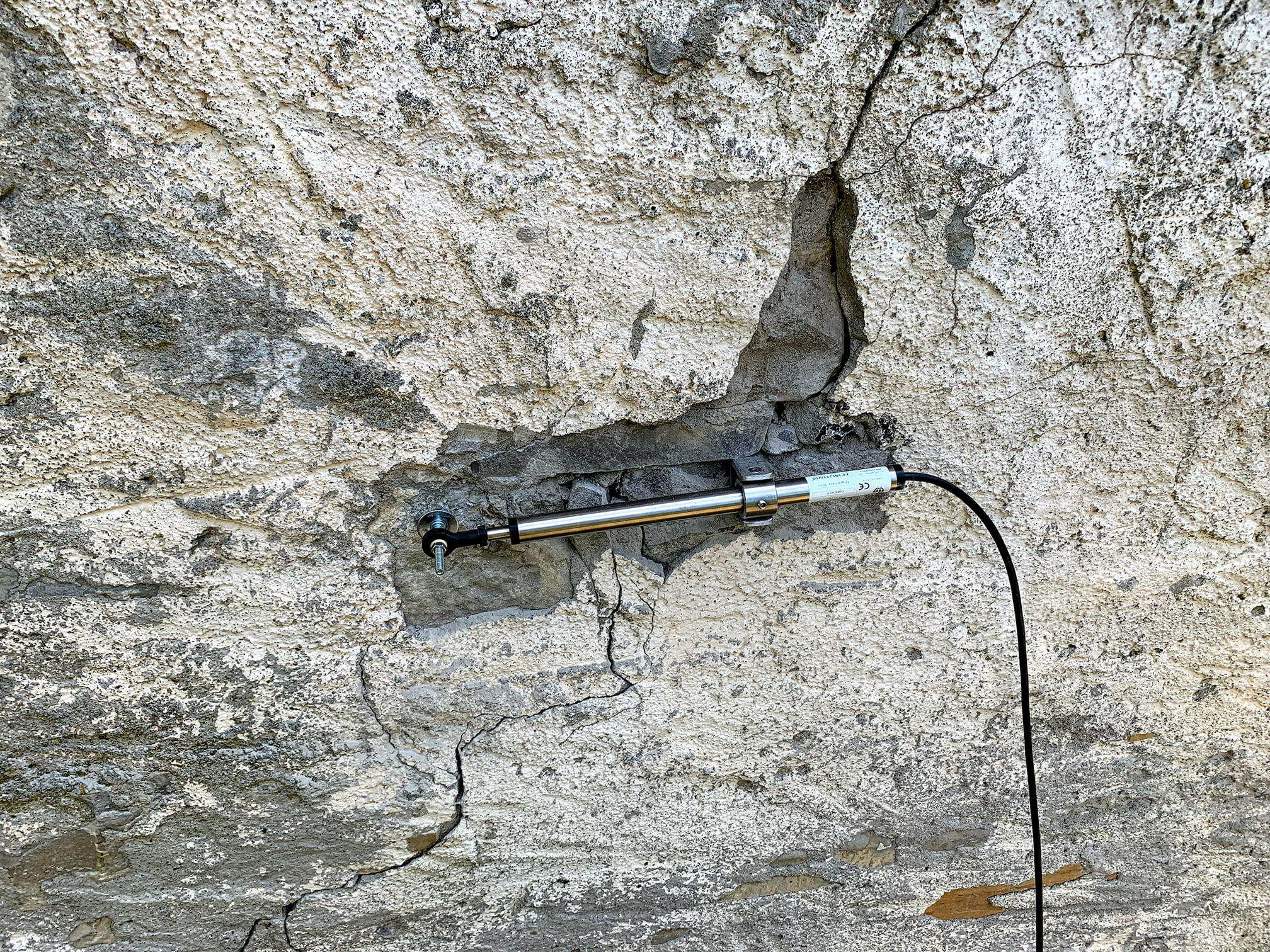

The site is instrumented with a single Vertical Array MUMS inclinometer, 30 m long, a tilt meter and two crack meters.



LOCATION

Agna (PR), Italy

CLIENT

Agenzia Regionale per la Sicurezza Territoriale e la Protezione Civile

RESPONSIBLE FOR MONITORING

ASE S.r.l

START OF MONITORING

July 2019

SYSTEMS USED
SENSORS

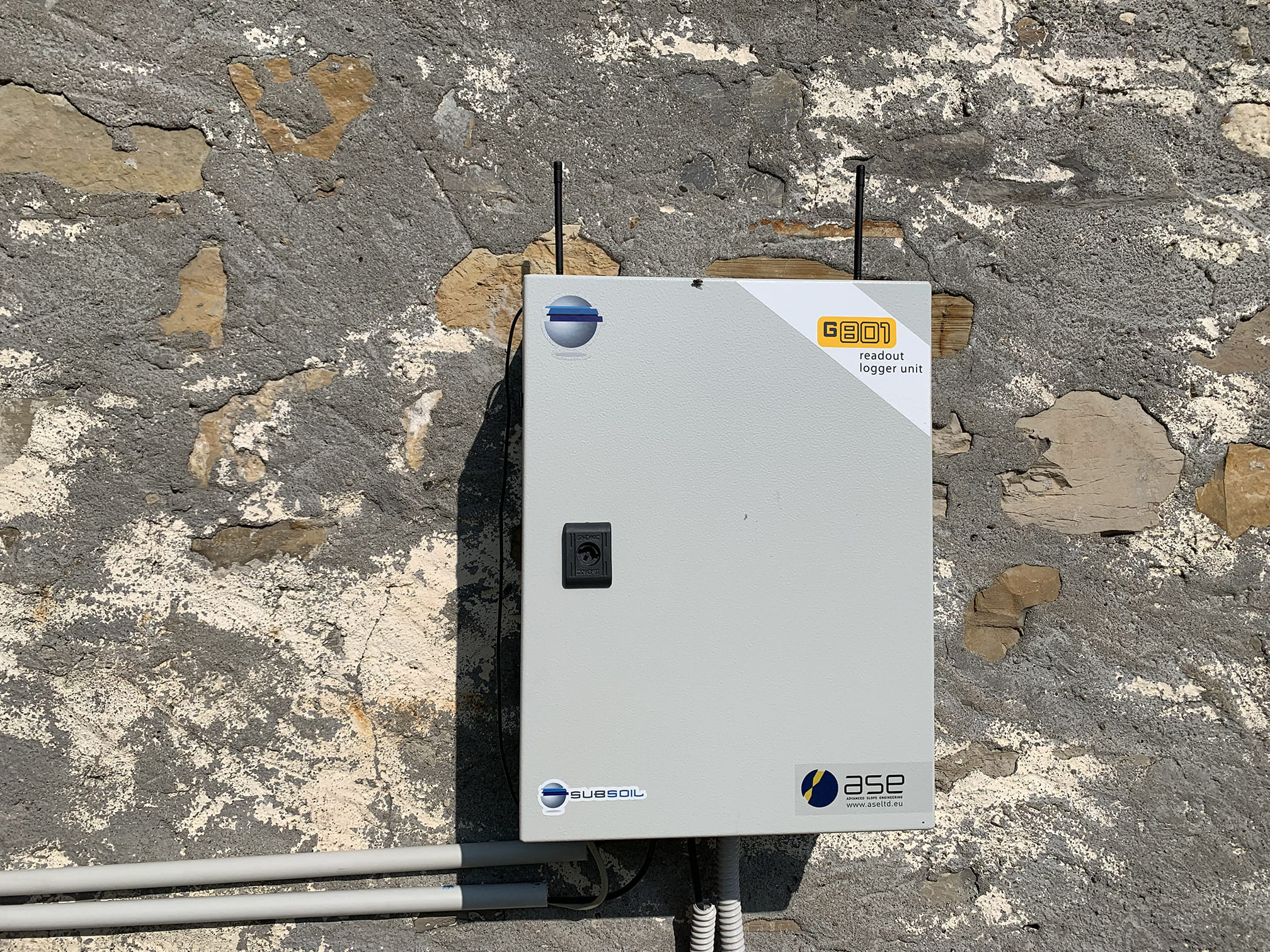

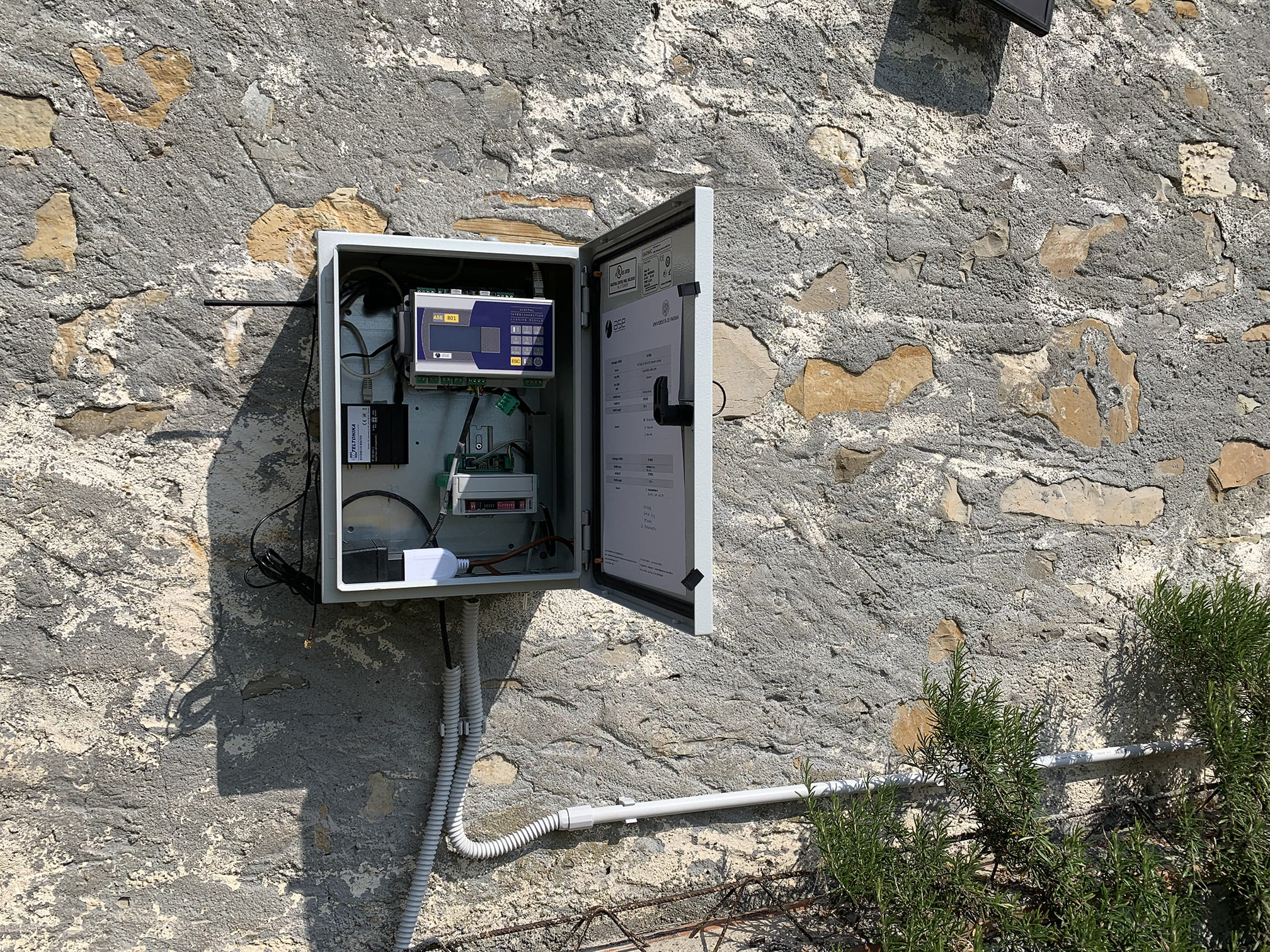

CONTROL UNIT

G801
